Reactors
High Pressure Reactor
Description

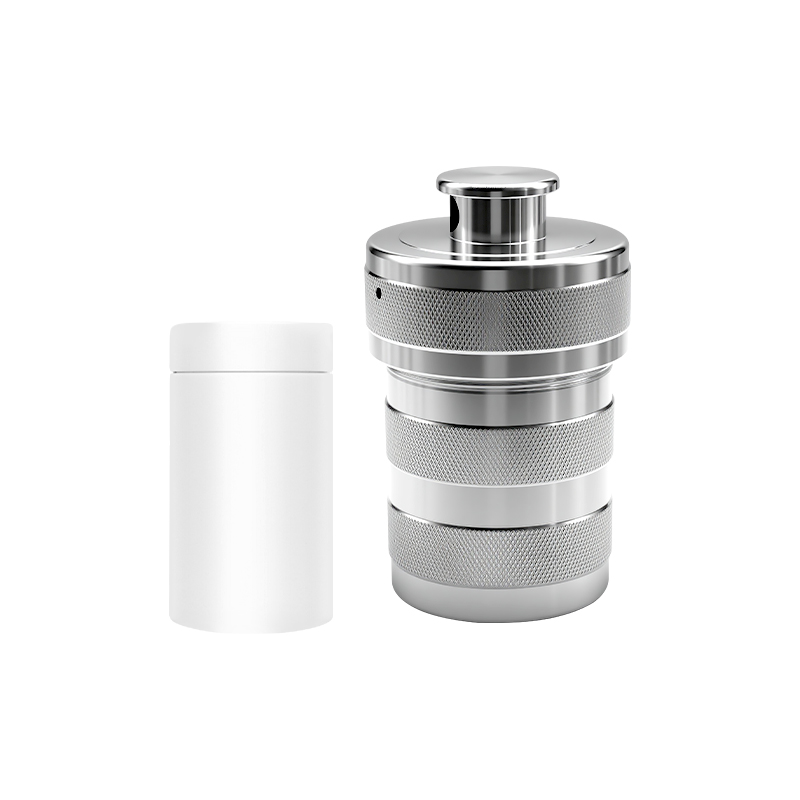

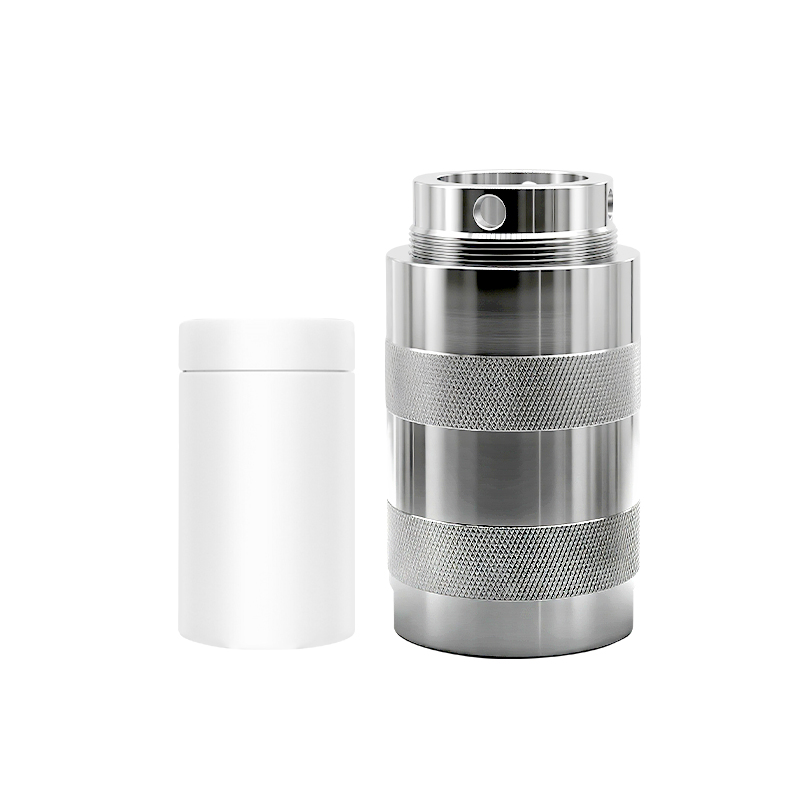

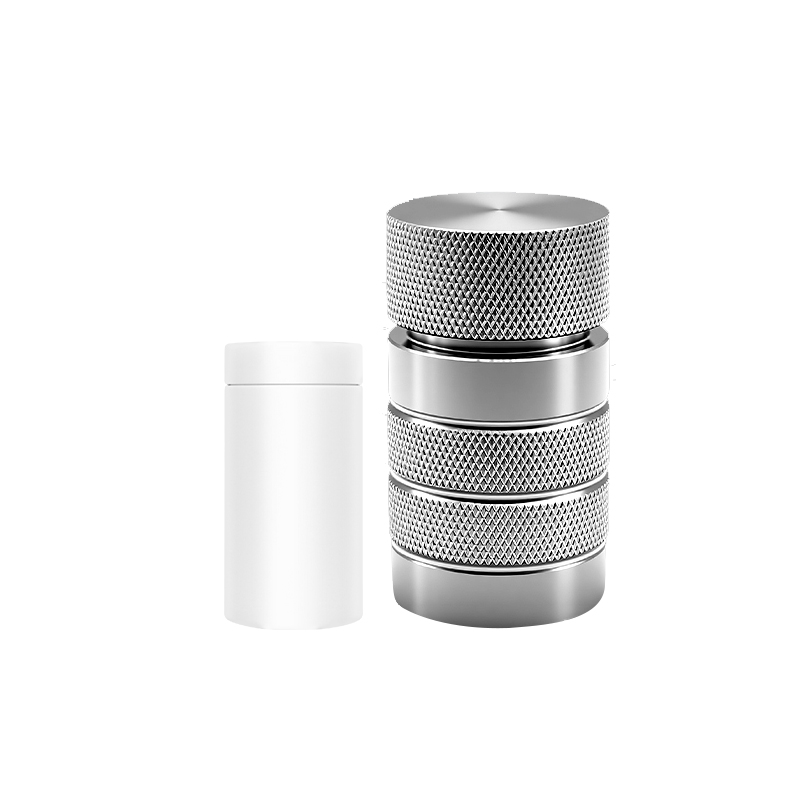

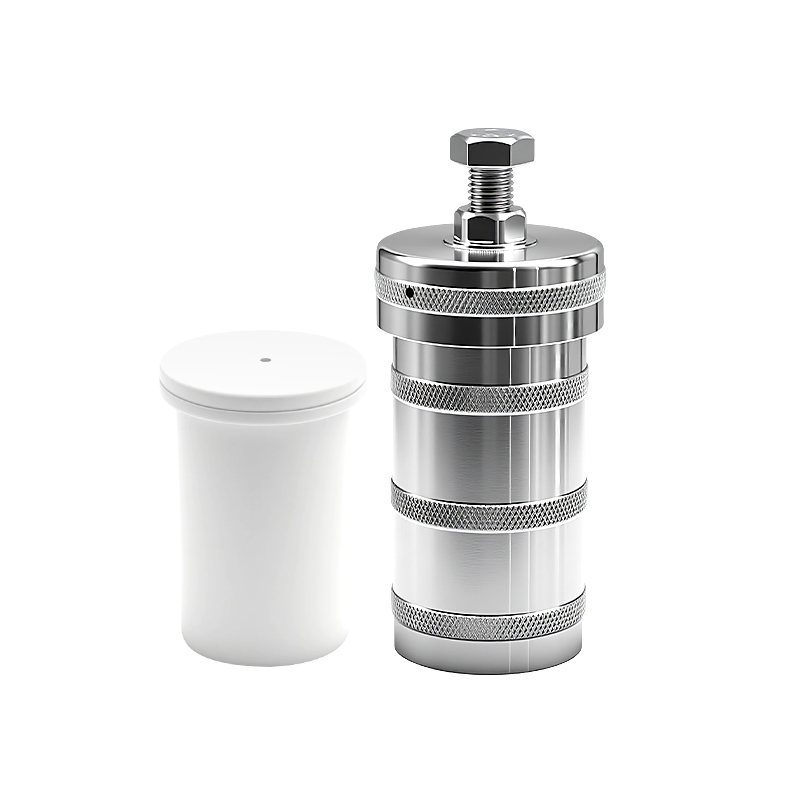

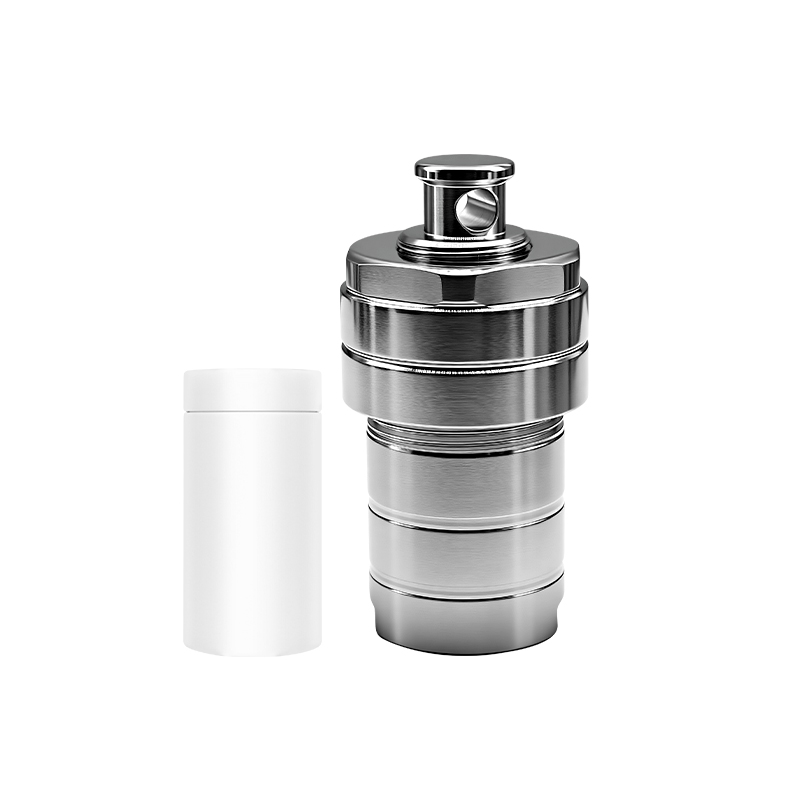

Professional high-pressure reactor for demanding chemical reactions requiring elevated temperatures and pressures. Constructed from premium SUS304 stainless steel with PTFE liner, dual valve system, and comprehensive safety features. Available in capacities from 25ml to 1000ml.
Specifications & Models
| Model | Volume | Temperature | Pressure | Body Material | Liner | Weight | Dimensions |
|---|---|---|---|---|---|---|---|
| YSDFL-25ml | 25ml | ≤240℃ | ≤6MPa | Premium SUS304 | 1pc PTFE | 2kg | W200 × L240mm |
| YSDFL-50ml | 50ml | ≤240℃ | ≤6MPa | Premium SUS304 | 1pc PTFE | 2.7kg | W220 × H250mm |
| YSDFL-100ml | 100ml | ≤240℃ | ≤6MPa | Premium SUS304 | 1pc PTFE | 3.5kg | W220 × H280mm |
| YSDFL-150ml | 150ml | ≤240℃ | ≤6MPa | Premium SUS304 | 1pc PTFE | 4kg | W225 × H290mm |
| YSDFL-200ml | 200ml | ≤240℃ | ≤6MPa | Premium SUS304 | 1pc PTFE | 4.9kg | W230 × H310mm |
| YSDFL-250ml | 250ml | ≤240℃ | ≤6MPa | Premium SUS304 | 1pc PTFE | 5.1kg | W230 × H330mm |
| YSDFL-300ml | 300ml | ≤240℃ | ≤6MPa | Premium SUS304 | 1pc PTFE | 6kg | W230 × H360mm |
| YSDFL-500ml | 500ml | ≤240℃ | ≤6MPa | Premium SUS304 | 1pc PTFE | 8.5kg | W245 × H370mm |
| YSDFL-1000ml | 1000ml | ≤240℃ | ≤6MPa | Premium SUS304 | 1pc PTFE | 12.5kg | W260 × H420mm |
Standard Features & Optional Accessories
Standard Features:
- • 2pcs / 3mm ferrule
- • Pressure Gauge: 1pc / Range 0-6MPa
- • Body & Lid: Premium SUS304
- • Liner: 1pc PTFE
Optional Accessories:
- • Temperature probe
- • Explosion-proof device
- • PTFE coating
- • Heating device
